Lec 11: The Memory Hierarchy

Random Access Register (RAM)

SRAM vs DRAM

	Transistors per bit	Access time	Needs refresh?	Needs EDC?	Cost	Applications
SRAM	4 or 6	1X	No	Maybe	100x	Cache memories
DRAM	1	10X	Yes	Yes	1x	Main memories, frame buffers

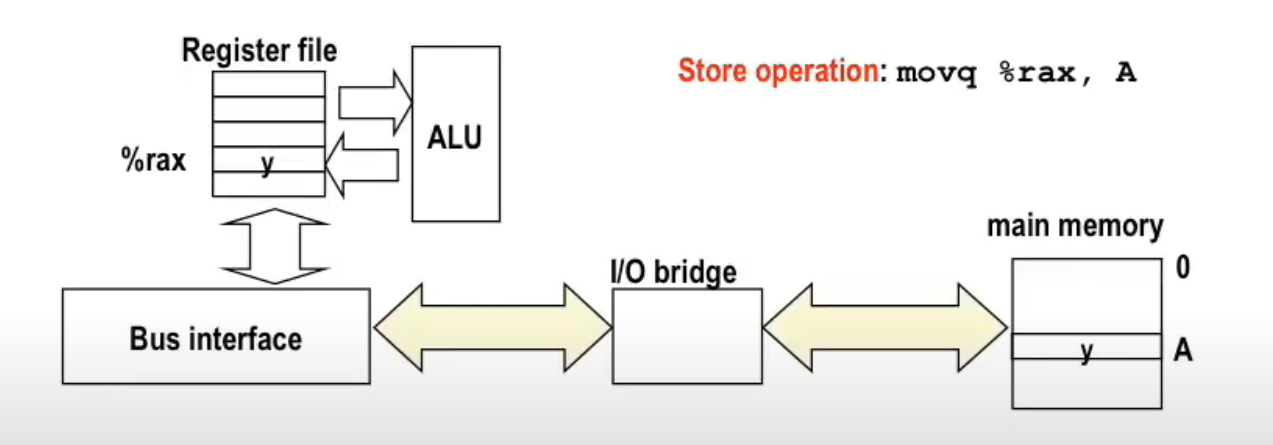

I/O with memory

Since reading from memory is slow, and memory is far away from CPU, you have to use 50~100 ns to retrieve data from main memory, whereas typical operations between registers can be sub-nanosecond.

HDD

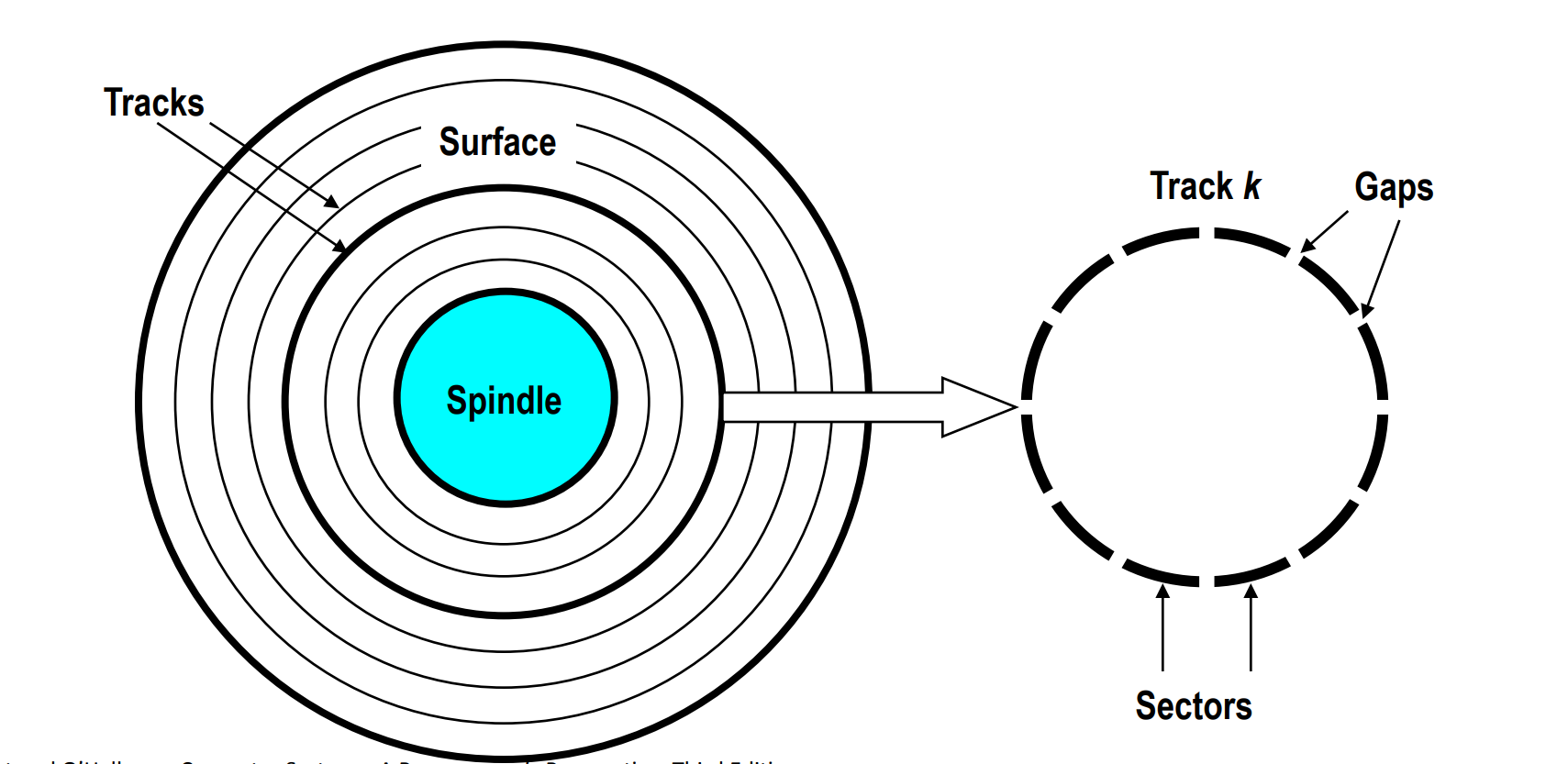

Geometry of a Disk

Disk consists of platters, each with 2 surfaces
Each surface consists of concentric rings called tracks
Each track consists of sectors separated by gaps
each sector typically contains 512 bytes

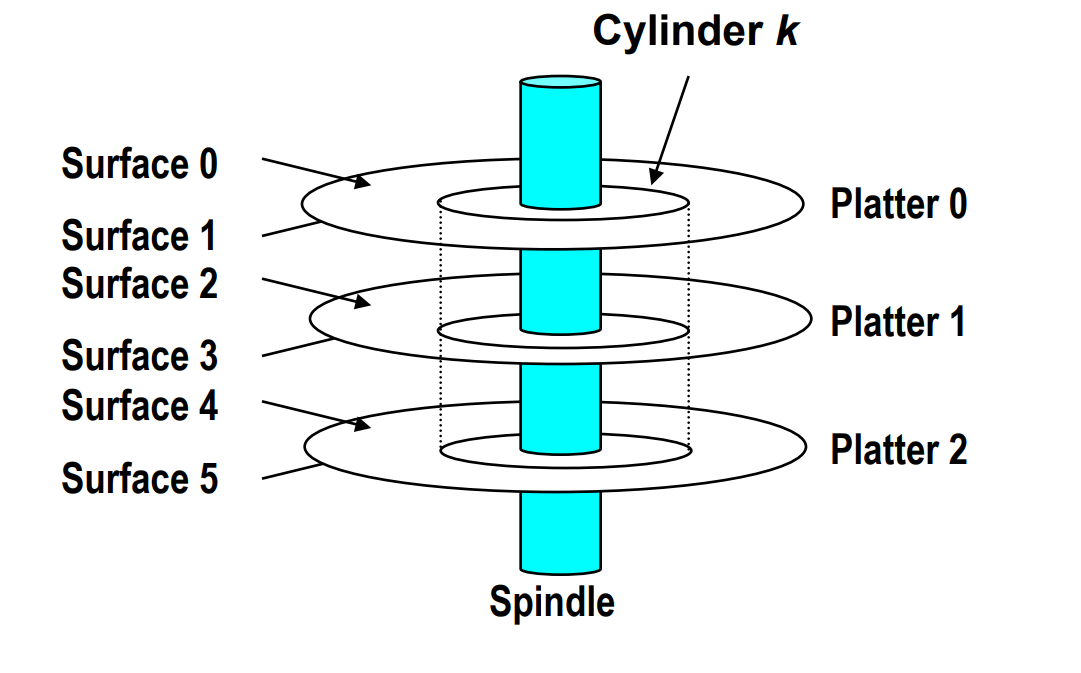

Also, aligned tracks form a cylinder

Disk Capacity

Capacity: Maximum number of bits that can be stored.

Vendors express capacity in units of gigabytes (GB), where 1 GB = \(10^9\) Bytes.

Capacity is determined by these technology factors:

Recording density (bits/in): Number of bits that can be squeezed into a 1 inch segment of a track.
Track density (tracks/in): Number of tracks that can be squeezed into a 1 inch radial segment.
Areal density (bits/in^2): Product of recording and track density.

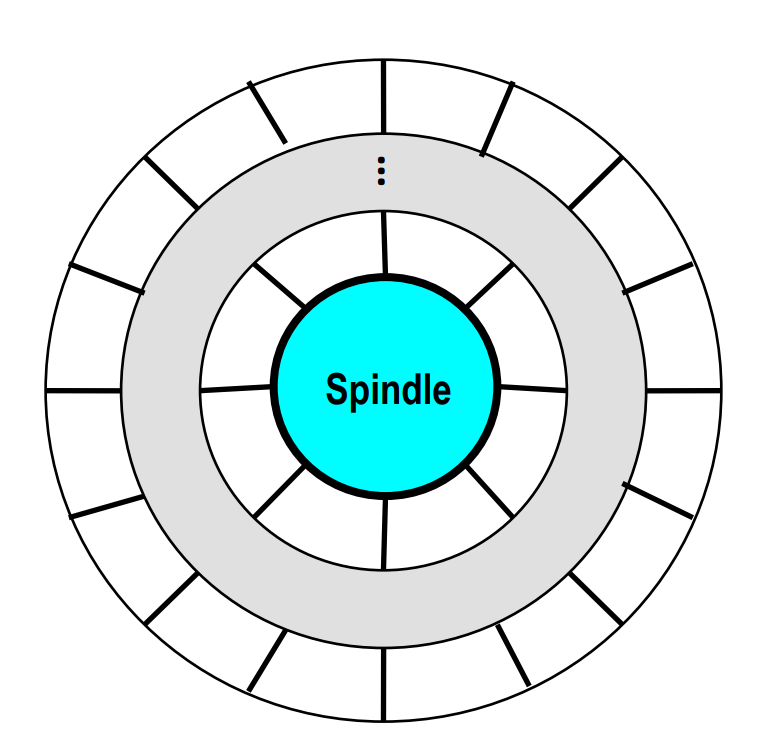

Recording Zone

In order not to waste space, modern hard disk uses recording zones to partition the disk into disjoint units.

Modern disks partition tracks into disjoint subsets called recording zones.

Each track in a zone has the same number of sectors, determined by the circumference of the innermost track.
for the sake of easy I/O
Each zone has a different number of sectors per track, with outer zones having more sectors per track than inner zones.
in order not to waste space
Therefore, we use the average number of sectors per track when computing capacity.

Compute Disk Capacity

Capacity = (#bytes/sector) x (avg. #sectors/track) x (#tracks/surface) x (#surfaces/platter) x (#platters/disk)

Example: - 512 bytes/sector - 300 sectors/track (on average) - 20,000 tracks/surface - 2 surfaces/platter - 5 platters/disk

\[ \begin{aligned} \text{Capacity} &= 512 \times 300 \times 20000 \times 2 \times 5 \\ &= 30,720,000,000 \\ &= 30.72 \text{ GB} \end{aligned} \]

Disk Access Time

Average time to access some target sector approximated by:

Seek time (Tavg seek)
Time to position heads over cylinder containing target sector.
Typical Tavg seek is 3-9 ms.
Rotational latency (Tavg rotation)
Time waiting for the first bit of the target sector to pass under r/w head.
Tavg rotation = 1/2 x 1/RPMs x 60 sec/1 min.
Typical Tavg rotation is 7200 RPMs.
Transfer time (Tavg transfer)
Time to read the bits in the target sector.
Tavg transfer = 1/RPM x 1/(avg sectors/track) x 60 secs/1 min.

Rule of thumb: est. time of avg time is twice of seek time.

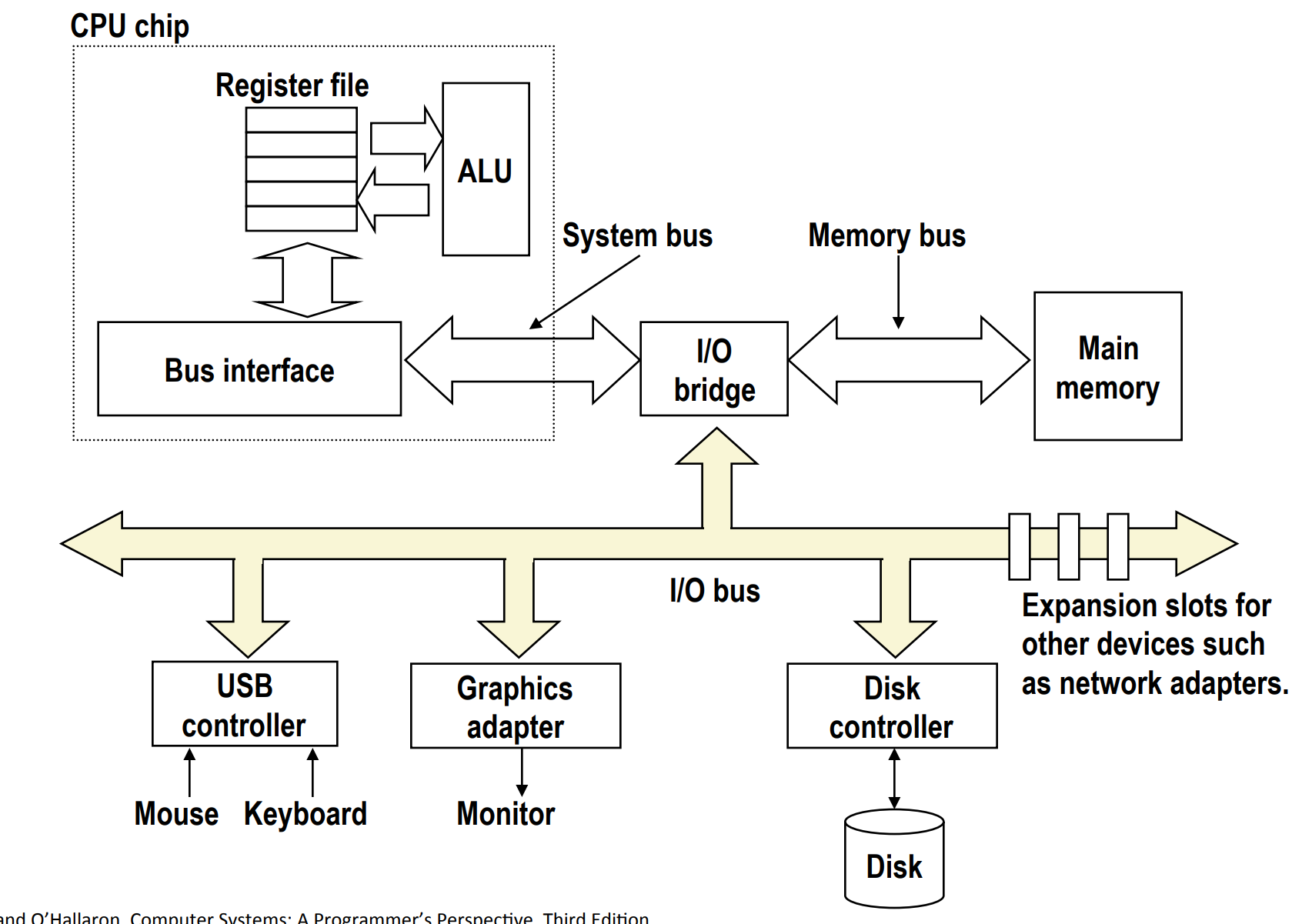

I/O with HDD

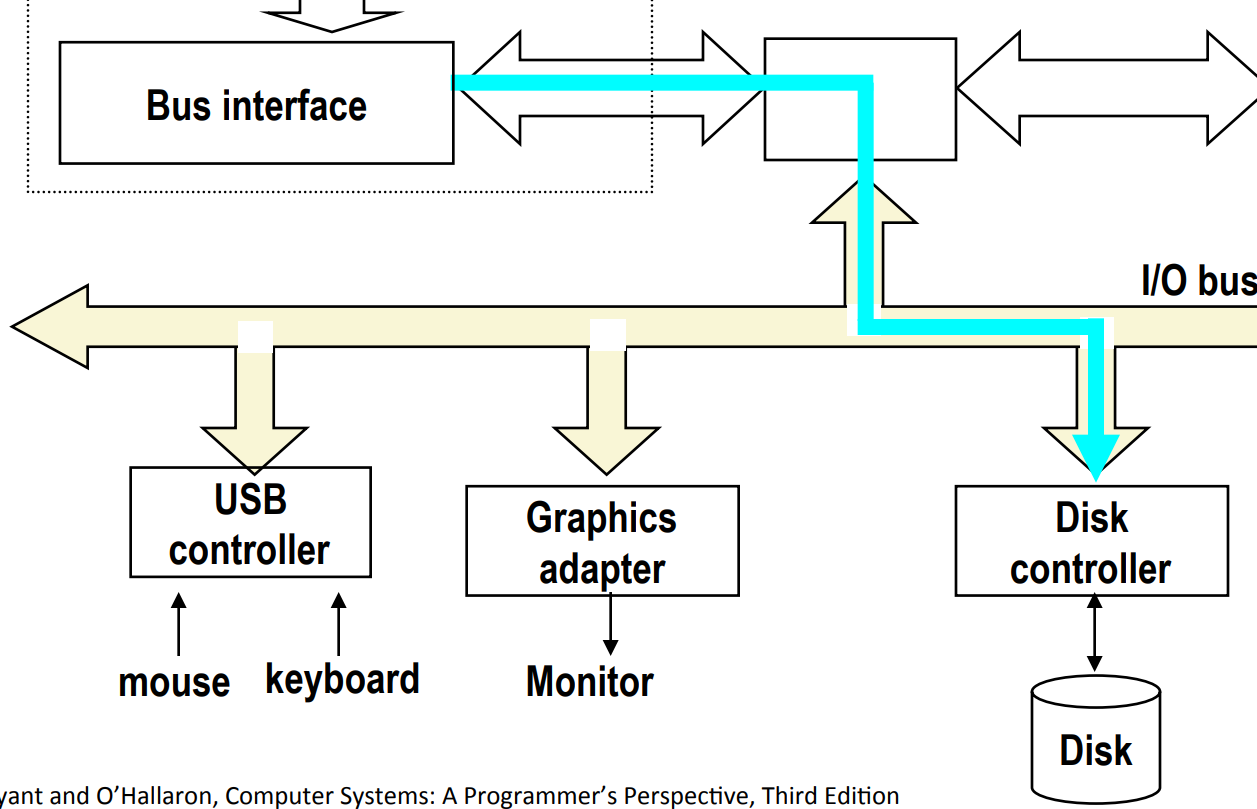

Step 1

CPU initiates a disk read by writing a

command,
logical block number,
and destination memory address

to a port (address) associated with disk controller.

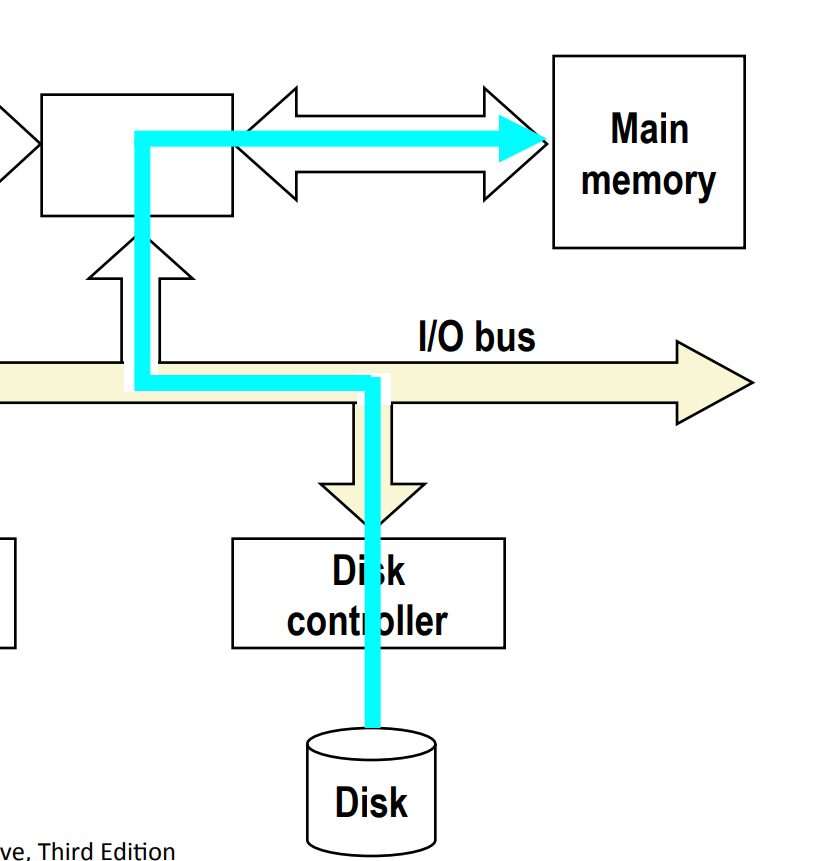

Step 2

Disk controller then reads the sector and performs a direct memory access (DMA) transfer into main memory.

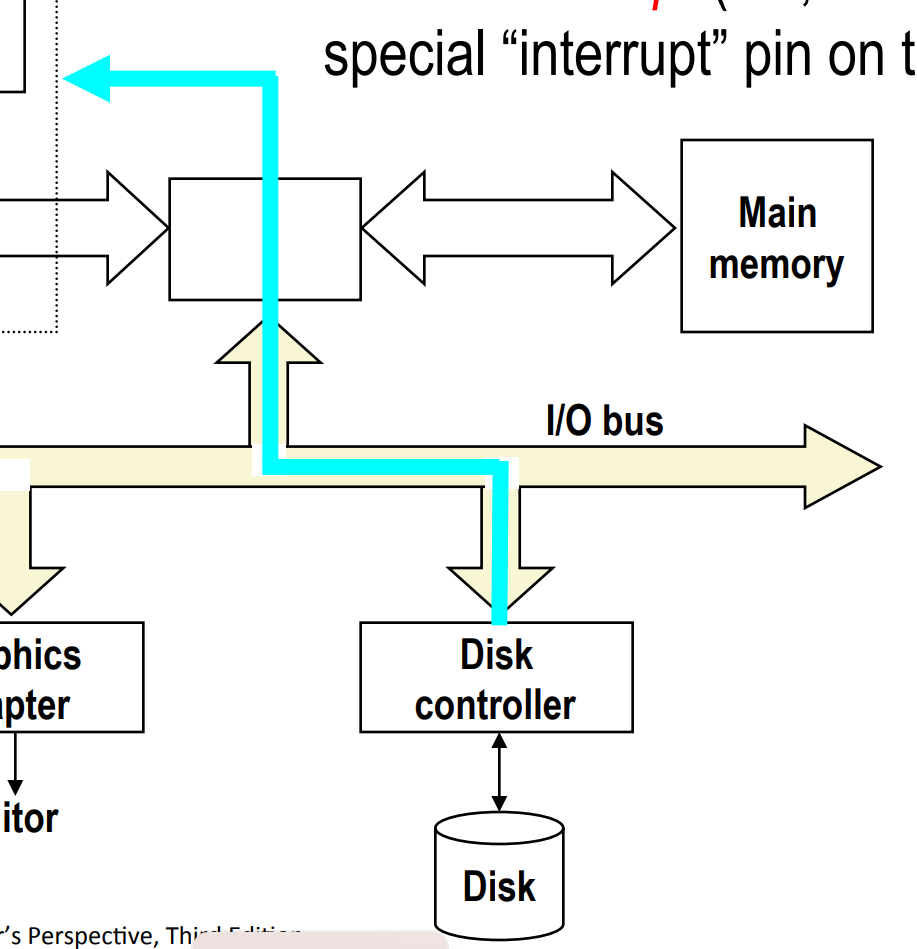

Step 3

When the DMA transfer completes, the disk controller notifies the CPU with an interrupt (i.e., asserts a special “interrupt” pin on the CPU).

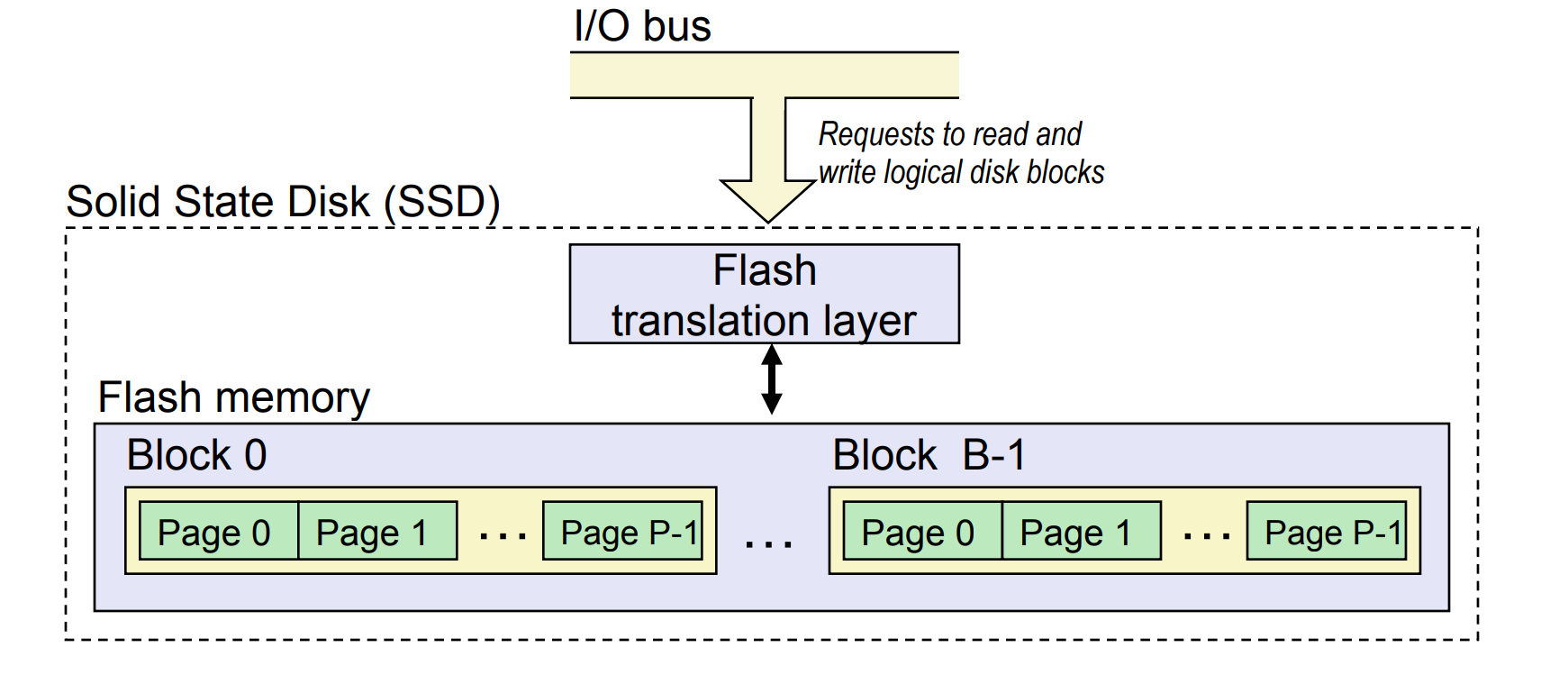

SSD

Pages: 512KB to 4KB, Blocks: 32 to 128 pages
note: the "blocks" stated here is different from logical blocks
Data read/written in units of pages.
A page can be written only after its block has been erased.
A block wears out after about 100,000 repeated writes.
there are algorithms to minimize the number of writes

Advantages
No moving parts: faster, less power, more rugged
Disadvantages
Have the potential to wear out
- Mitigated by "wear leveling logic" in flash translation layer
- E.g. Intel SSD 730 guarantees 128 petabyte (128 x 10^15 bytes) of writes before they wear out
In 2015, about 30 times more expensive per byte
Applications
MP3 players, smart phones, laptops
Beginning to appear in desktops and servers

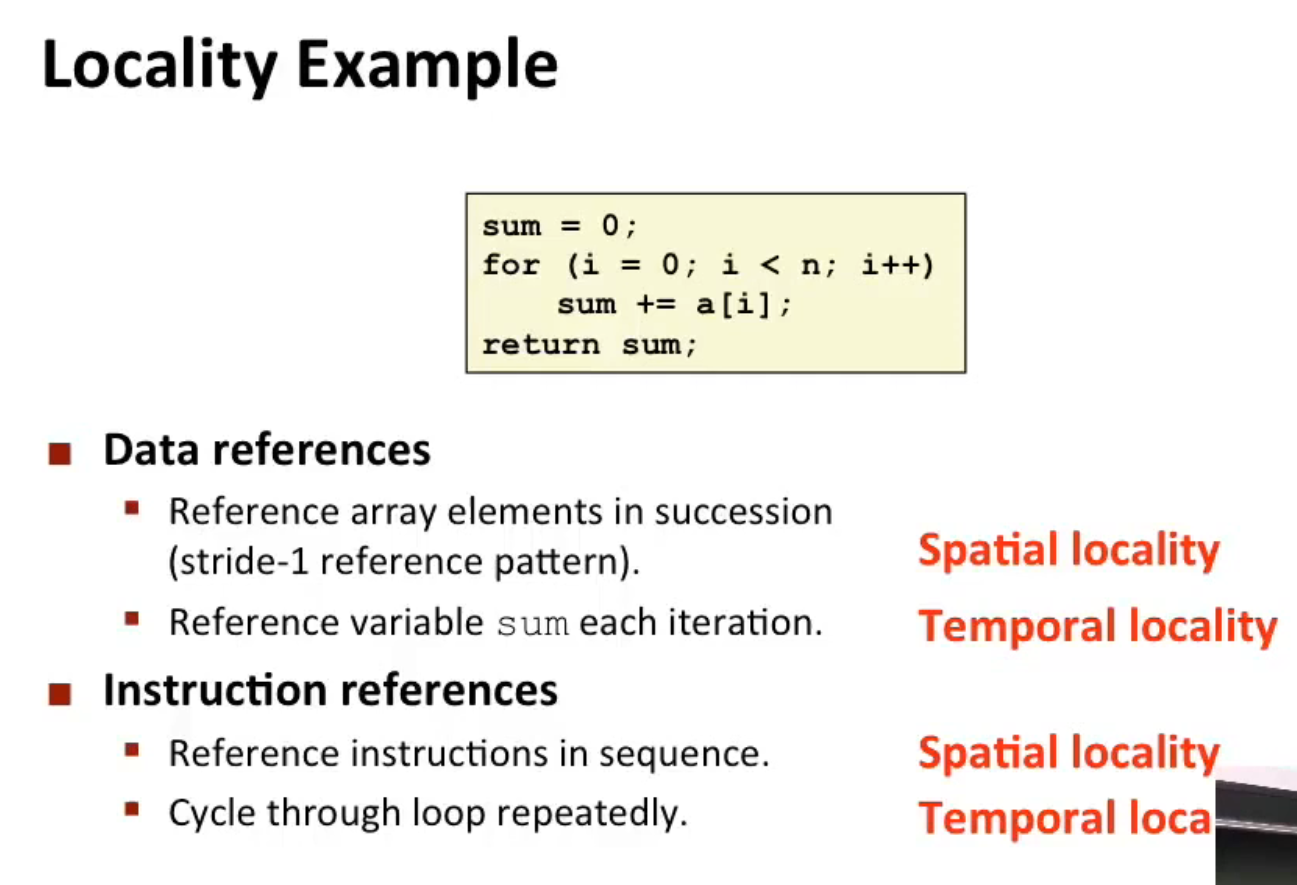

Locality of Programs

Principle of Locality: Programs tend to use data and instructions with addresses near or equal to those they have used recently

Temporal Locality: Recently referenced items are likely to be referenced again in the near future
e.g. in a loop, we will be visiting the same address several times
Spatial Locality: Items with nearby addresses tend to be referenced close together in time

Example:

Good vs Bad Locality

#include <stdio.h>
#include <time.h>

#define ROWS 10
#define COLS 100000
#define TOT_TIME 1000

int main() {
    int arr[ROWS][COLS];

    // Good locality code
    int good_sum = 0;
    clock_t good_local_start, good_local_end;
    good_local_start = clock();
    for (int times = 0; times < TOT_TIME; ++times)
        for (int i = 0; i < ROWS; i++) {
            for (int j = 0; j < COLS; j++) {
                good_sum += arr[i][j];
            }
        }
    good_local_end = clock();

    // Bad locality code
    int bad_sum = 0;
    clock_t bad_local_start, bad_local_end;
    bad_local_start = clock();
    for (int times = 0; times < TOT_TIME; ++times)
        for (int j = 0; j < COLS; j++) {
            for (int i = 0; i < ROWS; i++) { // bad spatial locality!
                bad_sum += arr[i][j];
            }
        }
    bad_local_end = clock();

    // print the times
    printf("Good locality code time: %f seconds\n", (double)(good_local_end - good_local_start) / CLOCKS_PER_SEC);
    printf("Bad locality code time: %f seconds\n", (double)(bad_local_end - bad_local_start) / CLOCKS_PER_SEC);

    return 0;
}

Without any optimization, the result is:

Good locality code time: 1.134834 seconds
Bad locality code time: 1.991599 seconds

Memory Hierarchy

Some fundamental and enduring properties of hardware and software:

Fast storage technologies cost more per byte, have less capacity, and require more power (heat!).
i.e. the faster, the more expensive and power-consuming.
The gap between CPU and main memory speed is widening.
i.e. memory retrieval is more and more expensive relatively
Well-written programs tend to exhibit good locality.

These fundamental properties complement each other beautifully. They suggest an approach for organizing memory and storage systems known as a memory hierarchy.

To take advantage of locality, we copy a chunk of data from \(k+1\)-th hierarchy to \(k\)-th hierarchy, so that it will probably be used some time in the future, and the value of its nearby addresses are also tend to be used in the near future. Thus, we can continue to use data from \(k\)-th hierarchy for a period of time, and thus saves much access time.

General Caching Concepts: Types of Cache Misses

Cold (compulsory) miss
Cold misses occur because the cache is empty
Capacity miss
Occurs when the set of active cache blocks (working set) is larger than the cache.
e.g. when the cache is of size 192KiB (i.e. 196,608 bytes), and you have an array of 100,000 longs
Conflict miss
For simplicity, we assume the cache is of size 4 bytes, and the mapping algorithm is simple mod n (i.e. mod 4 in this case). Suppose we visit a[0], a[4], a[8] alternatively, then since 0%4 = 4%4 = 8%4 = 0, these memory addresses conflict each other, and result in conflict misses.
(More details in tomorrow's course)

Examples of Caching in the Mem. Hierarchy

Cache Type	What is Cached?	Where is it Cached?	Latency (cycles)	Managed By
Registers	4-8 bytes words	CPU core	0	Compiler
TLB	Address translations	On-Chip TLB	0	Hardware MMU
L1 cache	64-byte blocks	On-Chip L1	4	Hardware
L2 cache	64-byte blocks	On-Chip L2	10	Hardware
Virtual Memory	4-KB pages	Main memory	100	Hardware+OS
Buffer cache	Parts of files	Main memory	100	OS
Disk cache	Disk sectors	Disk controller	100,000	Disk firmware
Network buffer cache	Parts of files	Local disk	10,000,000	NFS client
Browser cache	Web pages	Local disk	10,000,000	Web browser
Web cache	Web pages	Remote server disks	1,000,000,000	Web proxy server
