Lec 9: Advanced Topics

Today we will talk about some miscellaneous but important topics.

Outline

  • Memory Layout
  • Buffer Overflow
  • Vulnerability
  • Protection
  • Unions

Memory Layout

Machine-Level Programming V: Unions and Memory layout - ppt download

  • Stack
  • Store local variables
  • Runtime Stack (8MB limit for Linux)
  • Text/Shared Libraries
  • Store executable machine instructions
    • Note: library codes are stored on the disk (e.g. malloc, printf). They will be introduced to the program when it first starts executing, via dynamic linking.
  • Read-only
  • Data
  • Store static data
  • e.g. global variables, static vars, string constants
  • Heap
  • Dynamically allocated as needed
  • e.g. malloc(), calloc(), new, etc

Buffer Overflow

Example: gets

gets gets string from stdin, store it at dest and finally return dest.

/* Get string from stdin */
char *gets(char *dest) {
    int c = getchar();
    char *p = dest;
    while (c != EOF && c != '\n') {
        *p++ = c;
        c = getchar();
    }
    *p = '\0';
    return dest;
}

Because gets will not check the boundary, and there's no way to specify limit on number of characters to read, gets is prone to have buffer overflow.

Other vulnerable functions

  • strcpy, strcat: Copy strings of arbitrary length.
  • scanf, fscanf, sscanf: when given %s conversion specification.
  • the same as gets

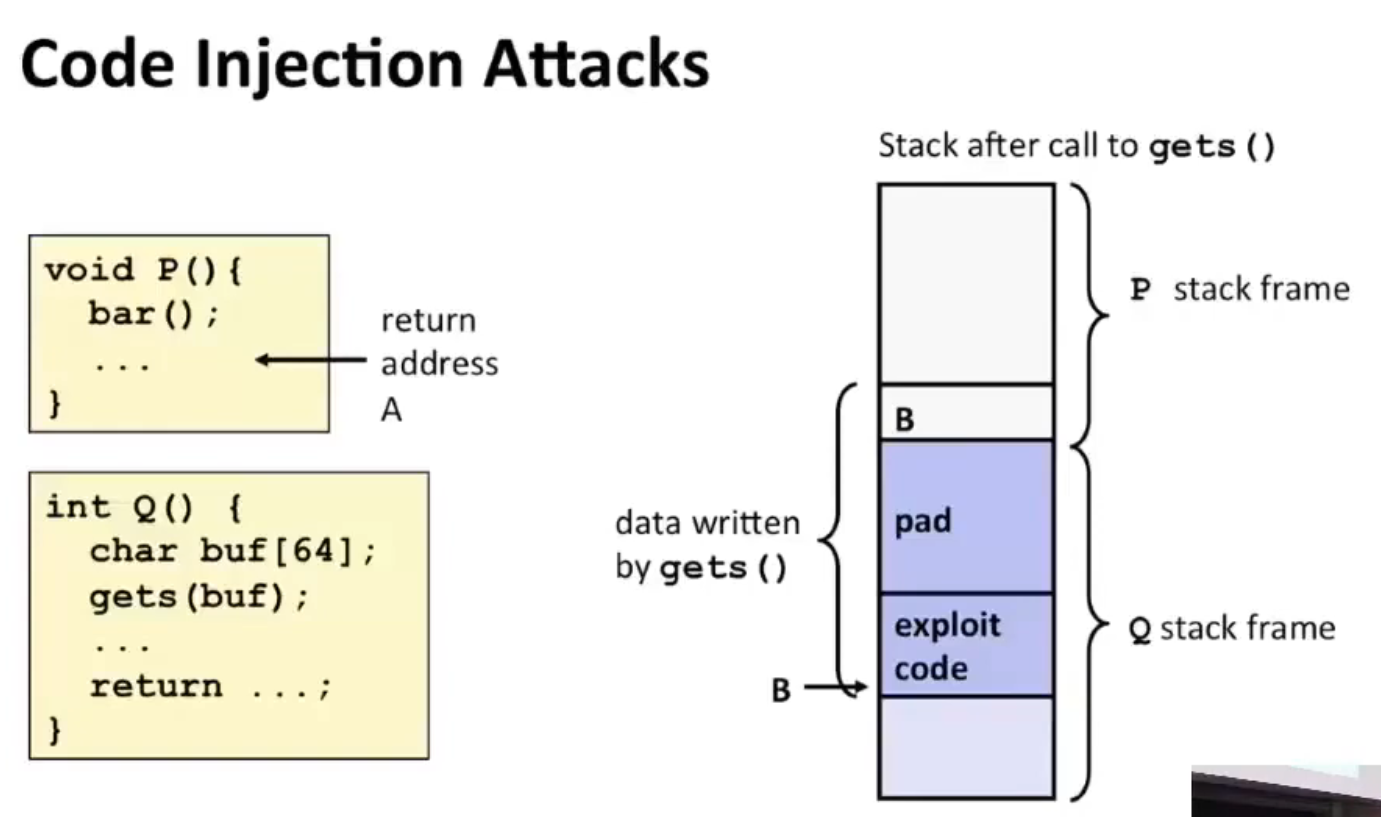

Code Injection Attack

image-20240120215155307

typo: bar() should be Q()

  • Input string contains byte representation of
  • executable code
  • padding
  • ret address
  • When Q() gets returned, it will go to address B and start executing the exploited code.
  • Note the return address is stored in the caller's frame.

Sidenote: Worm vs. Virus

特性 蠕虫 病毒
定义 蠕虫是一种自我复制的恶意软件，它可以在网络中自我传播，无需附着在宿主文件或者其他程序上。 病毒是一种恶意软件，它需要附着在宿主文件或者其他程序上才能传播。
传播方式 蠕虫可以自我复制并通过网络自我传播，无需用户交互。 病毒需要用户交互（如打开文件、运行程序）才能传播。
影响 蠕虫主要通过消耗系统资源（如网络带宽、内存）来影响系统性能。 病毒可以对系统文件进行修改、删除，甚至窃取用户数据。
自我复制 蠕虫可以自我复制，并在没有用户知情的情况下在网络中传播。 病毒需要附着在宿主文件上才能复制自身。

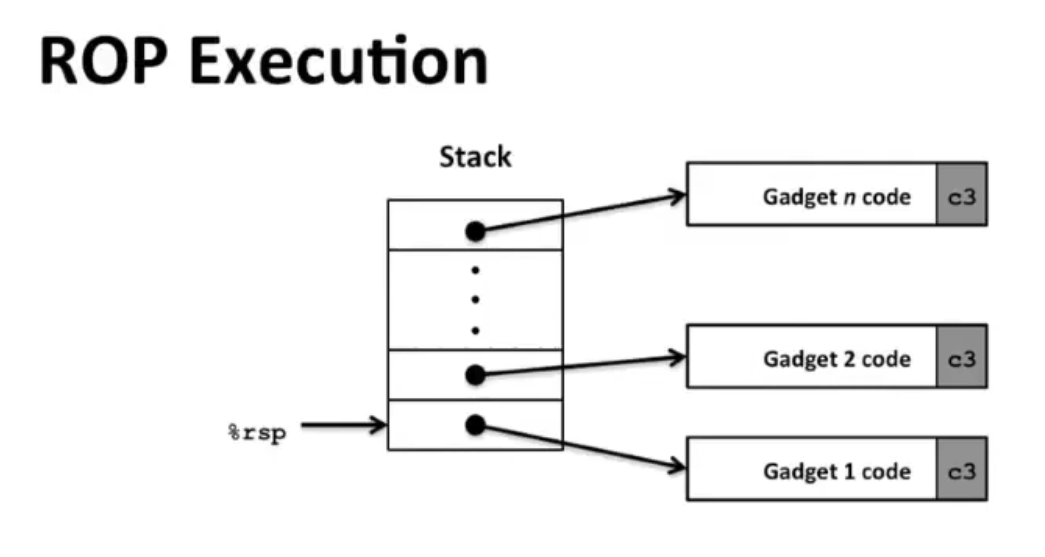

Return-Oriented Programming

Since stack can be randomized and inexecutable, we need to use the present code gadgets instead of our own codes.

image-20240121015610312

  • Trigger with ret instruction
  • Will start executing Gadget 1
  • Final ret in each gadget will start next one

Protection

Avoid Overflow Vulnerabilities in Code (!)

void echo()
{
    char buf[4];
    fgets(buf, 4, stdin);
    puts(buf);
}
  • Use fgets instead of gets
  • Use strncpy instead of strcpy
  • Don't use scanf with %s
  • use fgets!
  • or at least use %ns where n is a suitable integer
  • ...

System-Level Protection

  1. Address space layout randomization (ASLR) is an oft used technique to protect system from this sort of attack.

Main Idea: apply a random address offset to the stack each time you run the program, so you can't predict where to return.

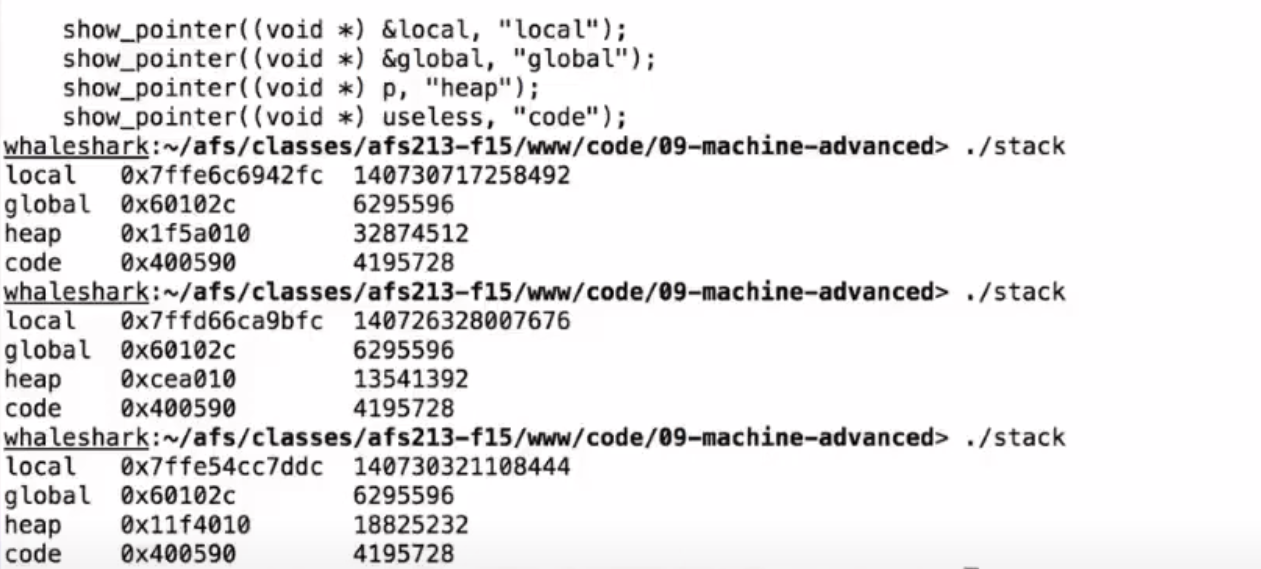

image-20240121005156273

As shown in the image, global is in data and useless is in text, so they won't vary. But local is in stack and p is in heap, so they vary.

  • p varies as well, since malloc also has its own random implementation.

  • Nonexecutable code segments

Main Idea:

  • In traditional x86, you can mark a region of memory as either "read-only" or "writable".
    • You can execute anything that is readable.
  • x86-64 added explicit "execute" permission.

  • The stack is marked as non-executable.

  • Stack Canaries

        High
        Address |                 |
                +-----------------+
                | args            |
                +-----------------+
                | return address  |
                +-----------------+
        rbp =>  | old ebp         |
                +-----------------+
      rbp-8 =>  | canary value    |
                +-----------------+
                | local variables |
        Low     |                 |
        Address

echo:
 ...
 mov    -0x8(%rbp),%rax # $rbp stores the original %rsp value
 xor    %fs:0x28,%rax
 je     0x5555555551d1 <echo+72>
 callq  0x555555555080 <__stack_chk_fail@plt>

 leaveq
 retq

In order to cause a buffer overflow and manipulate the return address, it is necessary to overflow the canary value, which is generated using a pseudo-random process. By overflowing the canary value, the validity check for the canary fails.

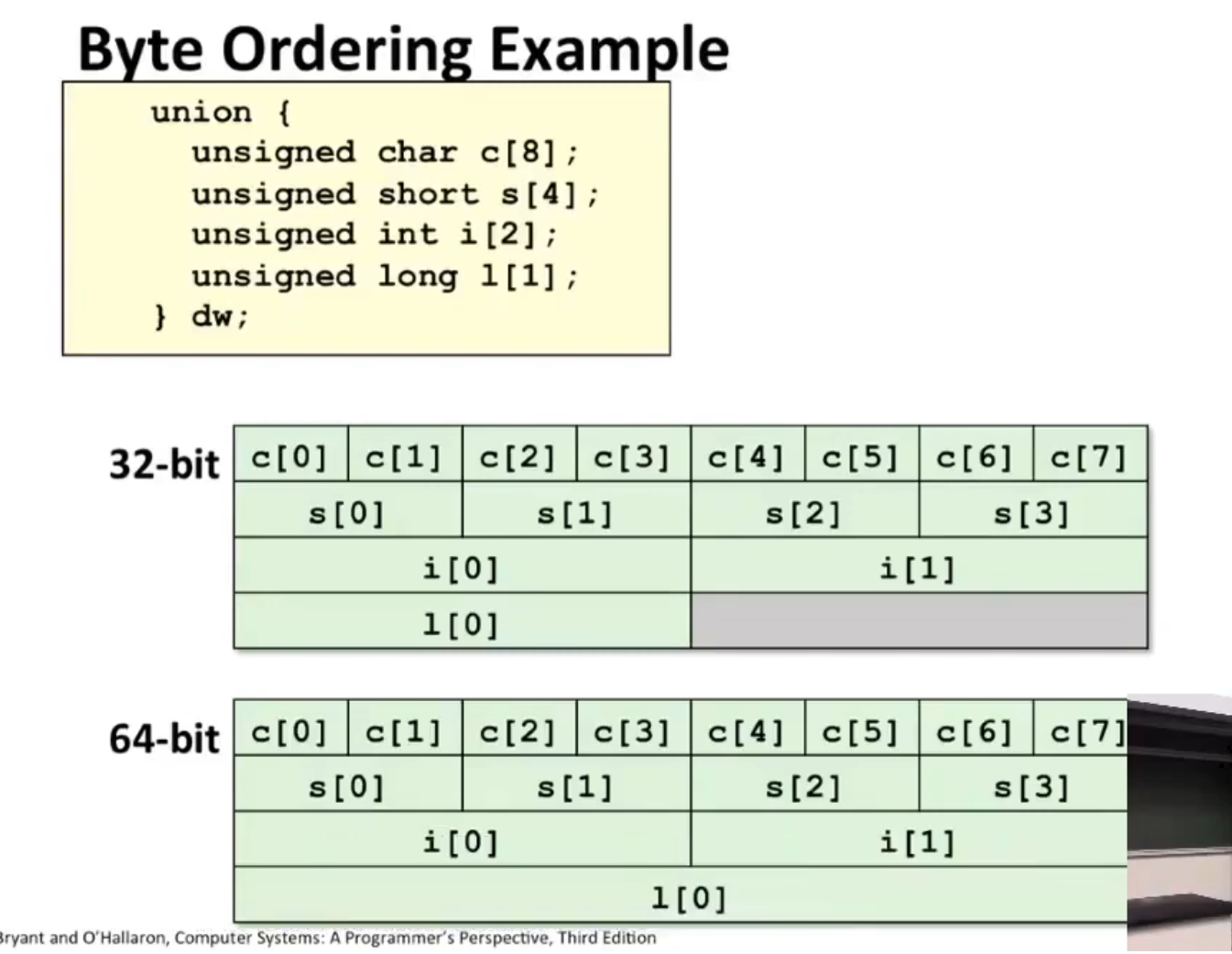

Union

image-20240121021256344
